What we produce

Let's take a look at what we are producing in New Zealand right now.

We produce a enormous amount of energy in New Zealand every year - around 900 Petajoules (PJs) worth. And while we are comparatively rich in renewable energy sources like hydro and geothermal energy, around half of our primary energy supply is made up of oil and gas.

In 2013, Oil and Gas produced

In 2013, Oil and Gas produced

292PJs

This is down from the most recent peak of 322 PJs in 2010.

There are currently

20

producing oil and gas fields in New Zealand, all of them based in Taranaki.

There are

There are

5

offshore fields in Taranaki.

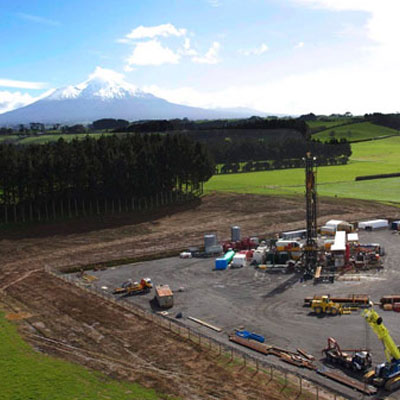

There are

There are

15

onshore fields

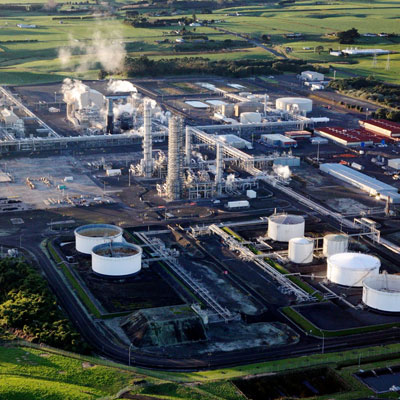

Taranaki has

Taranaki has

14

production stations.

What are we producing?

What are we producing?

1

When drilling, we never find just oil or gas by itself. What comes up is a variety of mixes of different types of oils and gases. Let's look at what different products come up.

1. Oil

High quality 'sweet' and ‘light’ condensates that predominate in NZ conditions find premium prices on the international market, and are almost entirely exported - mostly to refineries in Australia and Singapore, where it is refined into petroleum.

‘Sweet’ means our oil is relatively free of sulfur compounds, and ‘light’ means it flows freely and is light in colour – a relatively pure oil.

2. Natural gas

Natural gas, or 'dry' gas, is a naturally occurring hydrocarbon gas mixture consisting primarily of methane, but commonly includes varying amounts of other higher alkanes, and sometimes a small percentage of carbon dioxide, nitrogen, hydrogen sulfide, or helium.

Natural gas is generally distributed from Taranaki around the North Island via a piped reticulation network, and used domestically for heat and cooking, commercially to heat and power businesses, as a feedstock for methanol and urea production, and to generate electricity in gas-fired power stations.

3. LPG (Liquid Petroleum Gas)

Sometimes we find 'wet' gas or LPG. This is gas that is denser than natural gas, and as such behaves like a liquid.

LPG has the advantage of being more easy to store and transport than natural gas, and is transported via truck or bottles to be use domestically and commercially for heat and cooking, and to power the BBQ!

How much do we produce?

How much do we produce?

2

1. Oil Production

Production of oil varies in any given year but in the last 10 years we've generally produced anything from 10 million barrels to 20 million+ barrels in a year. In 2013 we produced 13 million barrels of oil.

Did you know? To put New Zealand's production into perspective, did you know that China uses around 10 million barrels a day. And the US, the largest oil consumer per capita, uses 20 million barrels a day!

2. Gas Production

For the last 10 years of so we've been producing around 4.25 to 5.65 billion cubic meters (bcm) of gas a year. In 2013 5.26 bcm of gas was produced, of which 4.53 bcm was fed into the gas supply network.

Did you know? 4.5 billion cubic meters sounds like a lot. But how much is that? To put it in perspective 4.5 bcm is the same as around 26.5 million barrels of crude oil (BOE), and represents over 20% of our total primary energy supply every year.

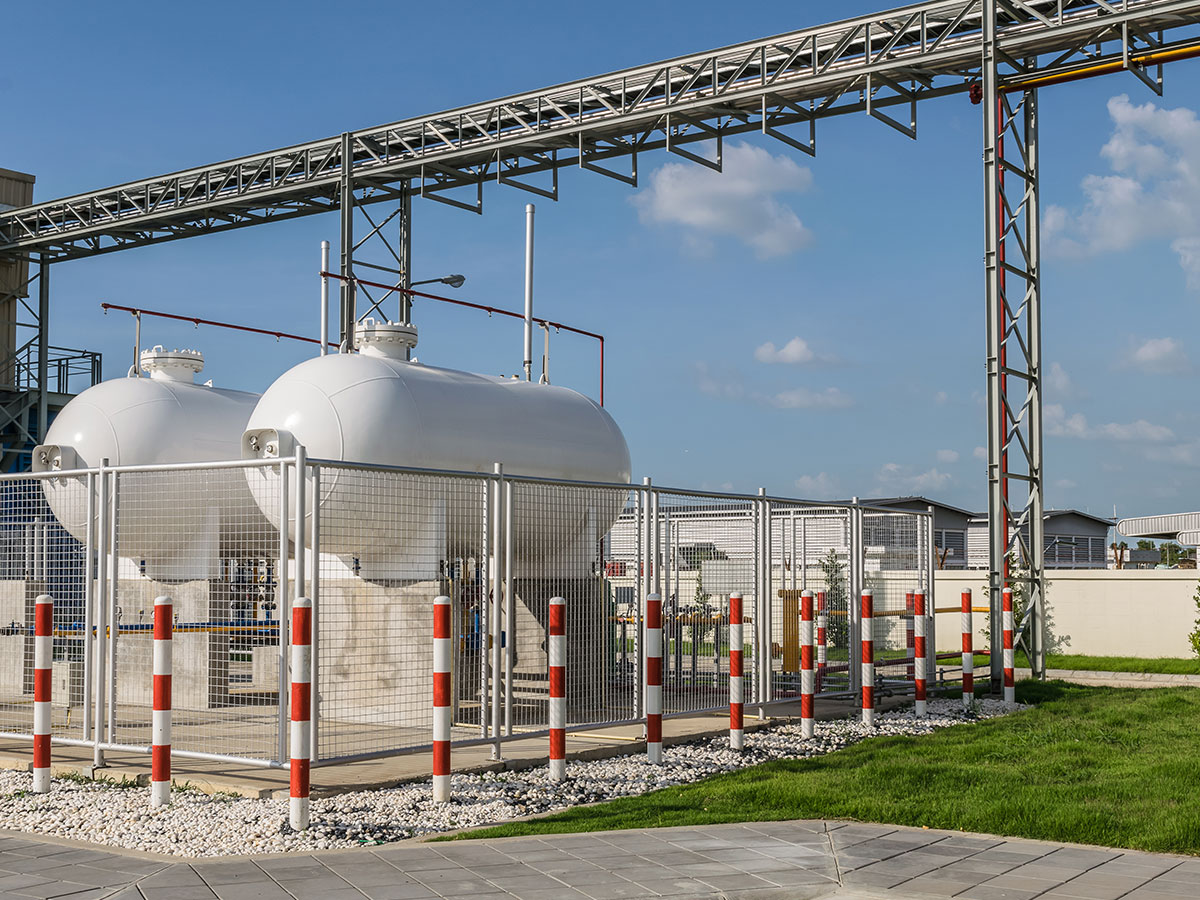

3. LPG Production

Over the last ten years or so, we've produced between 1 and 2 million barrels of LPG.

Where does it go?

3

New Zealand exports most of its oil

While New Zealand’s natural gas production is sold largely domestically, our oil outputs are predominantly exported. Oil from New Zealand’s onshore fields is transported either by pipeline or road-based tanker to storage and export facilities at Port Taranaki.

Offshore, oil from the Tui and Maari fields is collected directly from floating production storage and offloading (FPSO) vessels via tanker then exported directly to international markets - almost all our oil is transported directly to refineries in Australia and Singapore.

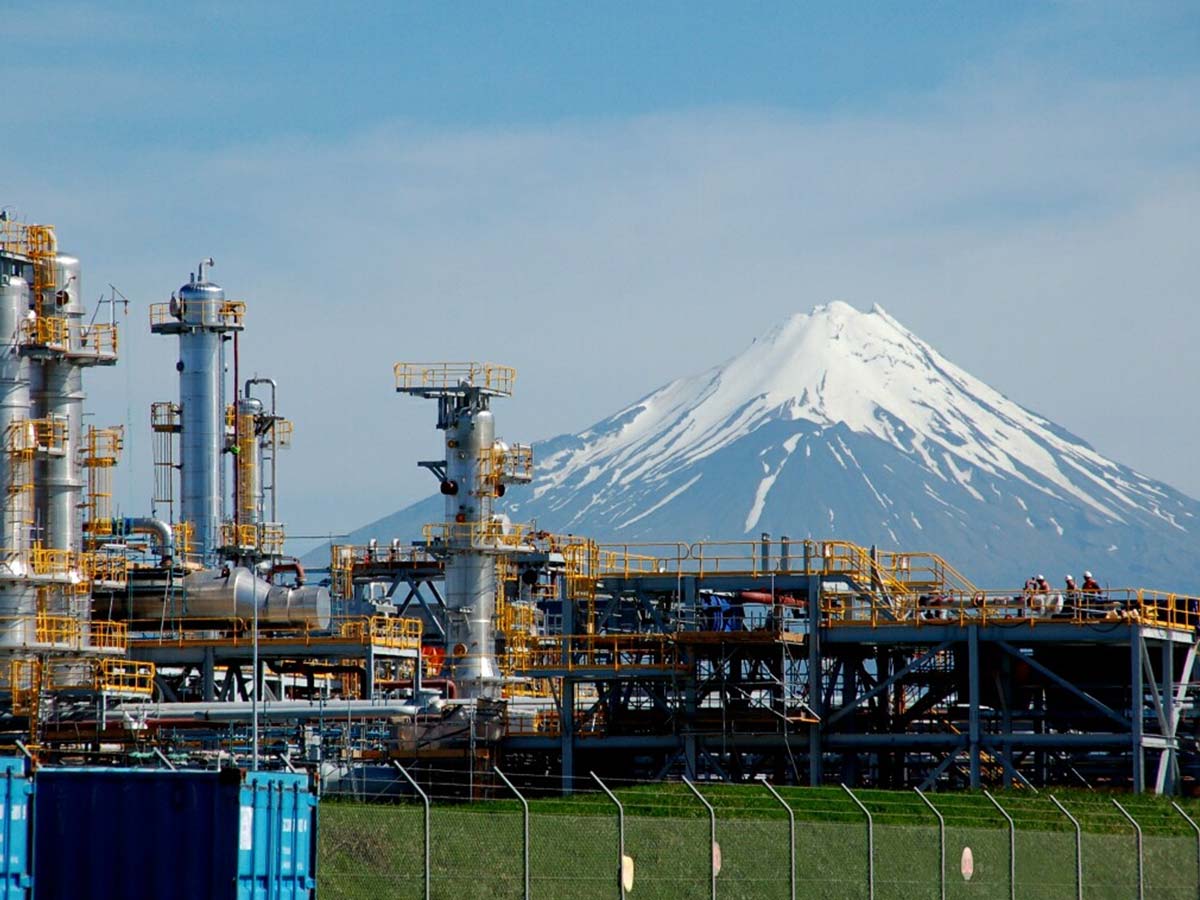

At other offshore fields, such as Kupe and Pohokura, product is collected by unmanned platforms then transported via sea-floor pipeline to shore for further processing before being distributed for export.

Once overseas, New Zealand oil is refined principally into petroleum products for the transport industry.

Natural gas is primarily used domestically in New Zealand. Natural gas is difficult and costly to transport, making it uneconomic, to date, to export it and sell it overseas in its raw state.

Gas for electricity

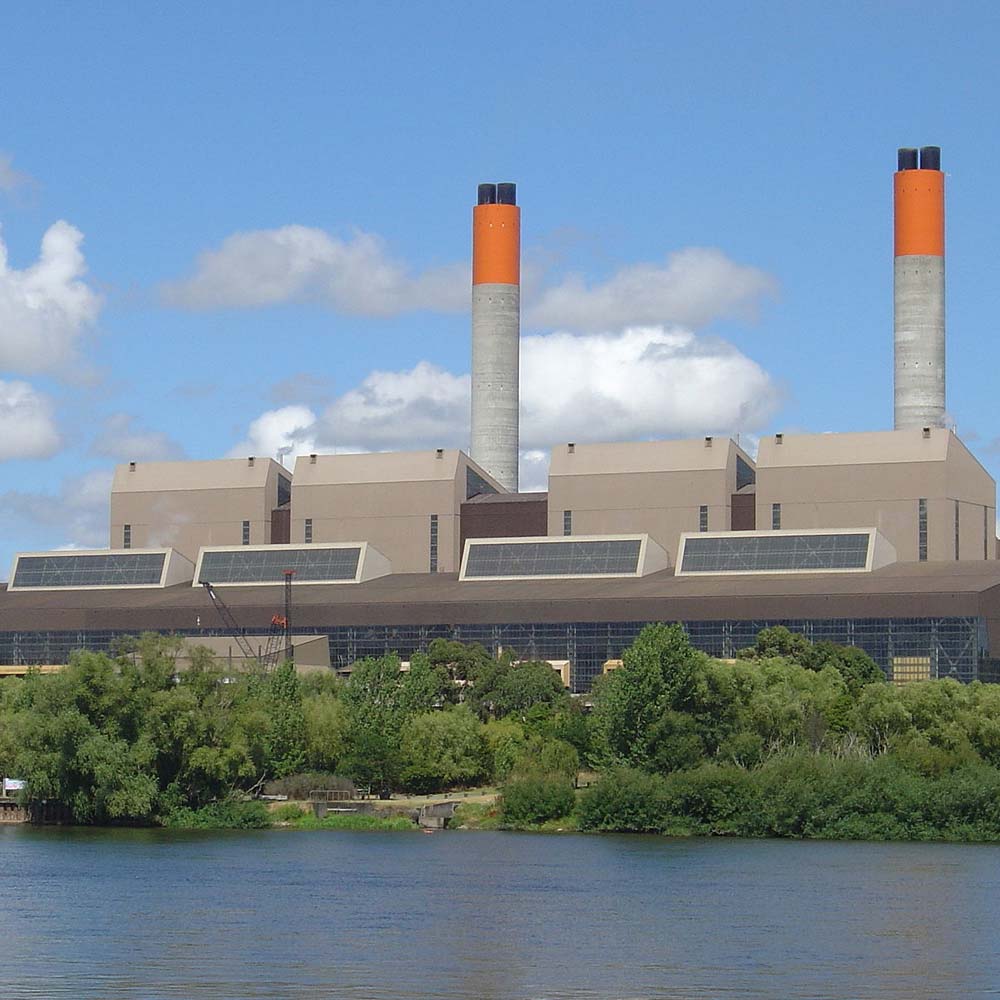

Around a third of our natural gas production is used to generate electricity in gas-fired power stations, producing approximately 20% of our electricity in any given year.

Gas for heat and power

Natural gas is sold to energy companies for distribution into homes for heating and cooking, and to commercial enterprises for heating and power. Around 250,000 homes and over 10,000 businesses utilise natural gas energy.

Natural gas as a feedstock

Around a third of our natural gas is used a main component in the production of methanol and fertiliser.

Methanol. New Zealand produces and exports a large quantity of methanol from the Methanex plant in Taranaki, all of which uses locally produced natural gas. Confidentiality means exports are largely unknown, though based on current production of 2.3 million tonnes at an average price of US$506 tonne, methanol exports are estimated close to NZ$1 billion.

Urea is a nitrogen rich compound used in fertilizer, and is produced by Ballance Agri-Nutrients using natural gas. This production provides 40 percent of total domestic urea demand, with the remaining 60 percent imported.

More on natural gas

Where are we getting the oil and gas from?

Where are we getting the oil and gas from?

4

All producing oil and gas fields are based on and offshore in Taranaki.

Oil.

New Zealand’s five largest oil fields accounted for over 80% of oil produced in 2014.

  1. Pohokura. 28.6%
  2. Maari. 21.4%
  3. Kupe. 10.8%
  4. Maui. 11.2%
  5. Tui. 9.0%



Gas.

Over 80% of New Zealand's gas production comes from just four fields in 2014.

  1. Pohokura. 37.9%
  2. Maui. 22.1%
  3. Kupe. 12.2%
  4. Mangahewa. 9.5%
